NVIDIA NDR DAC & ACC 常用铜缆汇总
作者：Tom 发布于：2024/9/26 16:50:53
AI 智算中心人工智能的发展，尤其是机器学习和深度学习等需要处理大量的数据，对数据传输的带宽和速度要求极高。光模块能够以极高的速率传输数据，如 400G、800G 甚至更高速度的光模块，可满足人工智能应用中大规模数据的快速传输需求，如在训练复杂的神经网络模型时，能快速将海量的数据传输到计算设备中进行处理，缩短训练时间，提高效率.
NO 1

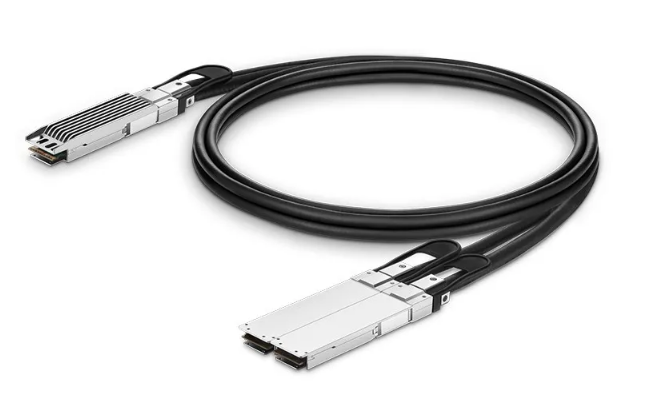

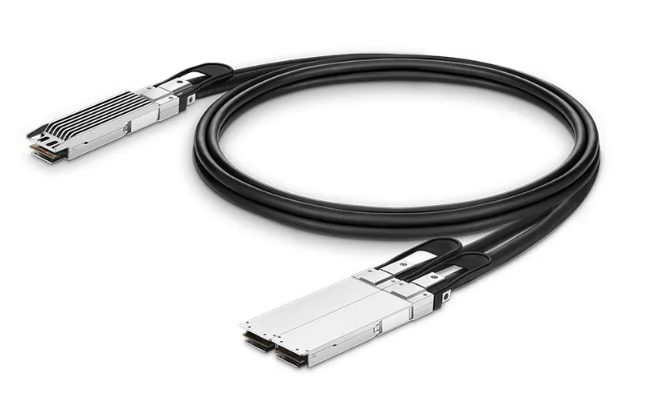

DAC NDR 800Gb/s to 4x200Gb/s, OSFP to 4xOSFP
应用领域：交换机连接网卡，Quantum-2 InfiniBand 或 Spectrum-4 以太网交换机转至四个 200Gb/s ConnectX-7 OSFP 适配器
| PN | Product Description |
| MCP7Y50-N001 | NVIDIA passive copper splitter cable,IB twin port NDR 800Gb/s to 4x200Gb/s, OSFP to 4xOSFP,1m |
| MCP7Y50-N01A | NVIDIA passive copper splitter cable,IB twin port NDR 800Gb/s to 4x200Gb/s, OSFP to 4xOSFP,1.5m |
MCP7Y50-N001- FLT | NVIDIA passive copper splitter cable,IB twin port NDR 800Gb/s to 4x200Gb/s, OSFP to 4xOSFP,1m,flat top |
| MCP7Y50-N02A | NVIDIA passive copper splitter cable,IB twin port NDR 800Gb/s to 4x200Gb/s, OSFP to 4xOSFP,2.5m |
| MCP7Y50-N003 | NVIDIA passive copper splitter cable,IB twin port NDR 800Gb/s to 4x200Gb/s, OSFP to 4xOSFP,3m |
| MCP7Y50-N002- FLT | NVIDIA passive copper splitter cable,IB twin port NDR 800Gb/s to 4x200Gb/s, OSFP to 4xOSFP,2m,flat top |
MCP7Y50-N01A- FLT | NVIDIA passive copper splitter cable,IB twin port NDR 800Gb/s to 4x200Gb/s, OSFP to 4xOSFP,1.5m,flat top |
| MCP7Y50-N002 | NVIDIA passive copper splitter cable,IB twin port NDR 800Gb/s to 4x200Gb/s, OSFP to 4xOSFP,2m |
NO.2

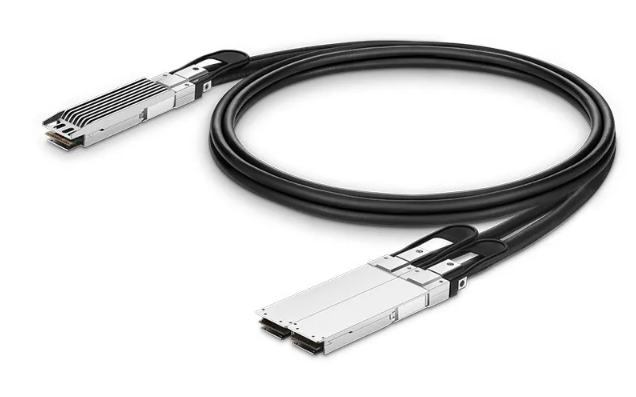

ACC NDR 800Gb/s to 4x200Gb /s, OSFP to 4xOSFP
应用领域：交换机连接网卡，InfiniBand Quantum-2 或 Spectrum-4 以太网交换机至四个 200Gb/s ConnectX-7 OSFP 适配器
| PN | ProductDescription |
| MCA7J70-N004 | NVIDIA active copper splitter cable,IB twin port NDR 800Gb/s to 4x200Gb /s, |
| OSFP to 4xOSFP,4m | |
| MCA7J70-N005 | NVIDIA active copper splitter cable,IB twin port NDR 800Gb/s to 4x200Gb /s, |
| OSFP to 4xOSFP,5m |

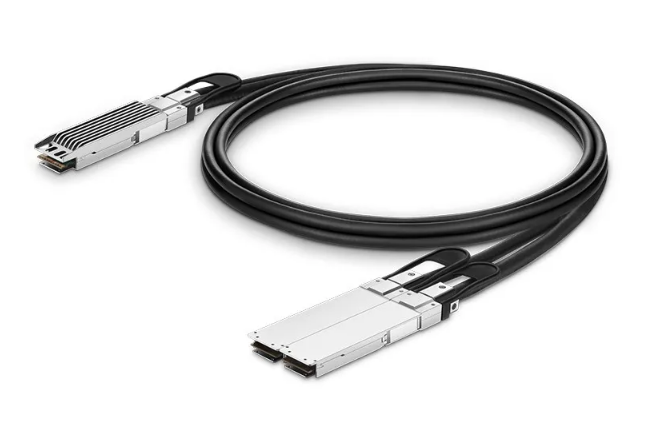

DAC NDR 800Gb/s to 4x200G b/s, OSFP to 4xQSFP112
应用领域：交换机连接网卡，InfiniBand Quantum-2 或 Spectrum-4 以太网交换机转至四个 200Gb/s QSFP112 BlueField-3 DPU 和/或 200Gb/s ConnectX-7
| PN | Product Description |
| MCP7Y40-N001 | NVIDIA passive copper splitter cable,IB twin port NDR 800Gb/s to 4x200G b/s, OSFP to 4xQSFP112,1m |
| MCP7Y40-N01A | NVIDIApassive copper splitter cable,IB twin port NDR 800Gb/s to 4x200G b/s, OSFP to 4xQSFP112,1.5m |
| MCP7Y40-N002 | NVIDIApassive copper splitter cable,IB twin port NDR 800Gb/s to 4x200G b/s, OSFP to4xQSFP112,2m |
| MCP7Y40-N02A | NVIDIApassive copper splitter cable,IB twin port NDR 800Gb/s to 4x200G b/s, OSFP to 4xQSFP112,2.5m |
| MCP7Y40-N003 | NVIDIApassive copper splitter cable,IB twin port NDR 800Gb/s to 4x200G b/s, OSFP to 4xQSFP112,3m |
NO.4

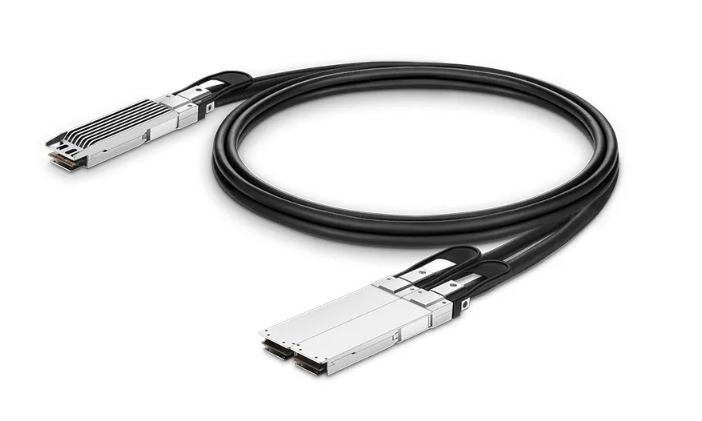

DAC NDR 800Gb/s to 2x400Gb/s, OSFP to 2xOSFP
应用领域：交换机连接网卡，InfiniBand Quantum-2 或 Spectrum-4 以太网交换机转至两个 400Gb/s ConnectX-7 OSFP 适配器
| PN | Product Description |
| MCP7Y40-N001 | NVIDIA passive copper splitter cable,IB twin port NDR 800Gb/s to 4x200G b/s, OSFP to 4xQSFP112,1m |
| MCP7Y40-N01A | NVIDIApassive copper splitter cable,IB twin port NDR 800Gb/s to 4x200G b/s, OSFP to 4xQSFP112,1.5m |
| MCP7Y40-N002 | NVIDIApassive copper splitter cable,IB twin port NDR 800Gb/s to 4x200G b/s, OSFP to4xQSFP112,2m |
| MCP7Y40-N02A | NVIDIApassive copper splitter cable,IB twin port NDR 800Gb/s to 4x200G b/s, OSFP to 4xQSFP112,2.5m |
| MCP7Y40-N003 | NVIDIApassive copper splitter cable,IB twin port NDR 800Gb/s to 4x200G b/s, OSFP to 4xQSFP112,3m |
NO.5
ACC NDR 800Gb/s to 2x400Gb /s, OSFP to 2xOSFP
应用领域：交换机连接网卡，InfiniBand Quantum-2 或 Spectrum-4 以太网交换机转至两个 400Gb/s ConnectX-7 OSFP 适配器
| PN | Product Description |
| MCA7J60-N004 | NVIDIA active copper splitter cable,IB twin port NDR 800Gb/s to 2x400Gb /s, OSFP to 2xOSFP,4m |
| MCA7J60-N005 | NVIDIA active copper splitter cable,IB twin port NDR 800Gb/s to 2x400Gb /s, OSFP to 2xOSFP,5m |
NO.6

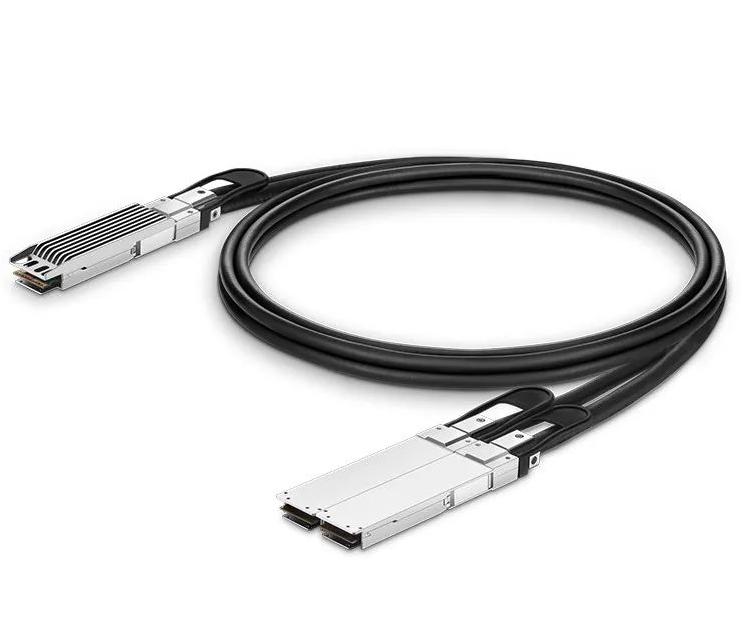

DAC NDR 800Gb/s to 2x400G b/s, OSFP to 2xQSFP112
应用领域：交换机连接网卡，InfiniBand Quantum-2 或 Spectrum-4 以太网交换机至两个 400Gb/s QSFP112 ConnectX-7 和/或 BlueField-3 DPU
| PN MCP7Y10-N001 MCP7Y10-N01A MCP7Y10-N002 MCP7Y10-N02A MCP7Y10-N003 | Product Description NVIDIA passive copper splitter OSFP to 2xQSFP112,1m NVIDIA passive copper splitter OSFP to 2xQSFP112,1.5m NVIDIA passive copper splitter OSFP to 2xQSFP112,2m NVIDIA passive copper splitter OSFP to 2xQSFP112,2.5m NVIDIA passive copper splitter OSFP to 2xQSFP112,3m | cable,IB twin port NDR 800Gb/s to 2x400G b/s, cable,IB twin port NDR 800Gb/s to 2x400G b/s, cable,IB twin port NDR 800Gb/s to 2x400G b/s, cable,IB twin port NDR 800Gb/s to 2x400G b/s, cable,IB twin port NDR 800Gb/s to 2x400G b/s, |
NO.7
ACC NDR 800Gb/s to 2x400Gb /s, OSFP to 2xOSFP
应用领域：交换机连接网卡，InfiniBand 800Gb/s Quantum-2 交换机至两个 400Gb/s QSFP112 BlueField-3 DPU
| PN | Product Description |
| MCA7J65-N004 | NVIDIA Active copper splitter cable,IB twin port NDR 800Gb/s to 2x400Gb /s, OSFP to 2xQSFP112,4m |
| MCA7J65-N005 | NVIDIA Active copper splitter cable,IB twin port NDR 800Gb/s to 2x400Gb /s, OSFP to 2xQSFP112,5m |
NO.8

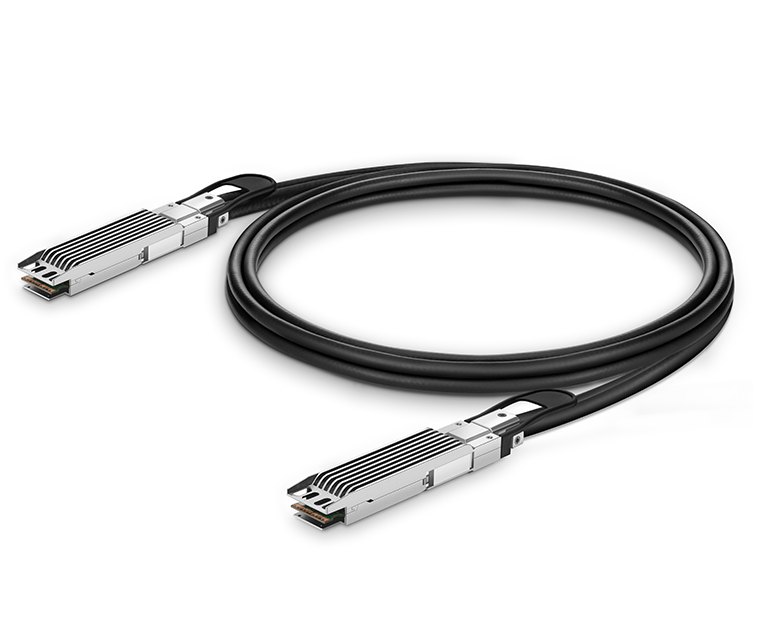

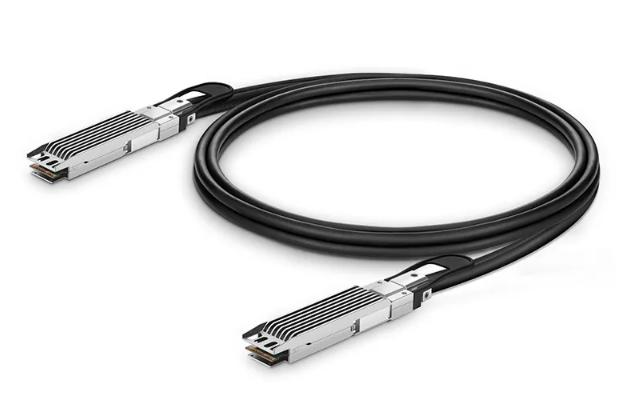

DAC IB twin port NDR, up to 800Gb/s, OSFP
应用领域：交换机连接交换机，Quantum-2 InfiniBand 或 Spectrum-4 以太网交换机到交换机以及交换机到 DGX-H100
| PN | Product Description |
| MCP4Y10-N00A | NVIDIA passive Copper cable,IB twin port NDR,up to 800Gb/s,OSFP,0.5m |
MCP4Y10-N00A- FLT | NVIDIA Passive Copper cable,IB twin port NDR,up to 800Gb/s,OSFP,0.5m,flat top |
| MCP4Y10-N001 | NVIDIA passive Copper cable,IB twin port NDR,up to 800Gb/s,OSFP,1m |
MCP4Y10-N001- FLT | NVIDIA Passive Copper cable,IB twin port NDR,up to 800Gb/s,OSFP,1m,flat top |
MCP4Y10-N001- FTF | NVIDIA Passive Copper cable,IB twin port NDR,up to 800Gb/s,OSFP,1m,flat to finned |
| MCP4Y10-N01A | NVIDIA passive Copper cable,IB twin port NDR,up to 800Gb/s,OSFP,1.5m |
MCP4Y10-N01A- FLT | NVIDIA passive Copper cable,IB twin port NDR,up to 800Gb/s,OSFP,1.5m,flat top |
| MCP4Y10-N002 | NVIDIA passive Copper cable,IB twin port NDR,up to 800Gb/s,OSFP,2m |
MCP4Y10-N002- FLT | NVIDIA passive Copper cable,IB twin port NDR,up to 800Gb/s,OSFP,2m,flat top |
NO.9

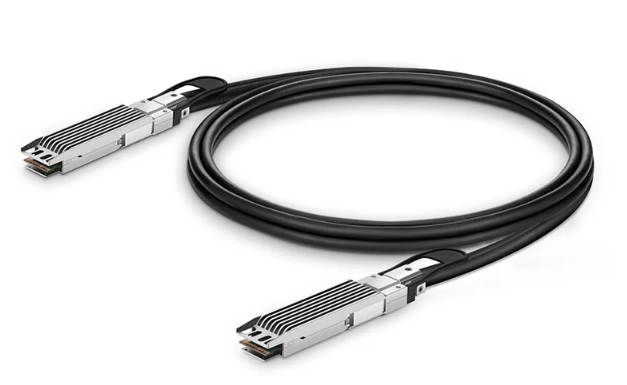

ACC IB twin port NDR, up to 800Gb/s, OSFP
应用领域：交换机连接交换机，Quantum-2 InfiniBand 或 Spectrum-4 以太网交换机到交换机以及交换机到 DGX-H100
| PN | Product Description |
| MCA4J80-N003 | NVIDIA active copper cable,IB twin port NDR,up to 800Gb/s,OSFP,3m |
| MCA4J80-N003- FLT | NVIDIA active copper cable,IB twin port NDR,up to 800Gb/s,OSFP,3m,flat top |
| MCA4J80-N004 | NVIDIA active copper cable,IB twin port NDR,up to 800Gb/s,OSFP,4m |
| MCA4J80-N005 | NVIDIA active copper cable,IB twin port NDR,up to 800Gb/s,OSFP,5m |
NO.10
DAC 400Gb/s to 2x200G b/s, OSFP to 2xQSFP56
应用领域：交换机连接交换机，InfiniBand Quantum-2 或 Spectrum-4 以太网交换机到交换机
| PN Product Description | |
| MCP7Y60-H001 | NVIDIA passive copper splitter cable,IB twin port HDR 400Gb/s to 2x200G b/s, OSFP to 2xQSFP56,1m |
| MCP7Y60-H01A | NVIDIA passive copper splitter cable,IB twin port HDR 400Gb/s to 2x200G b/s, OSFP to 2xQSFP56,1.5m |
| MCP7Y60-H002 | NVIDIA passive copper splitter cable,IB twin port HDR 400Gb/s to 2x200G b/s, OSFP to 2xQSFP56,2m |
